TEIDE ECO
TD0921S03 — CCEA Lights LED machine light
TEIDE ECO, 942 mm, 15 W, 24 Vdc, IP54, 120°, 5000K 3STEP MacAdam, Cable 10ft(3m) with M12-A 3P Male 3 m
Power15 W24 Vdc
Flux1200 lm80 lm/W
Optics120°IP54
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP54
- IK resistance
- IK06
- Wiring
- Cable · Cable 10ft(3m) with M12-A 3P Male · 3 m
Construction

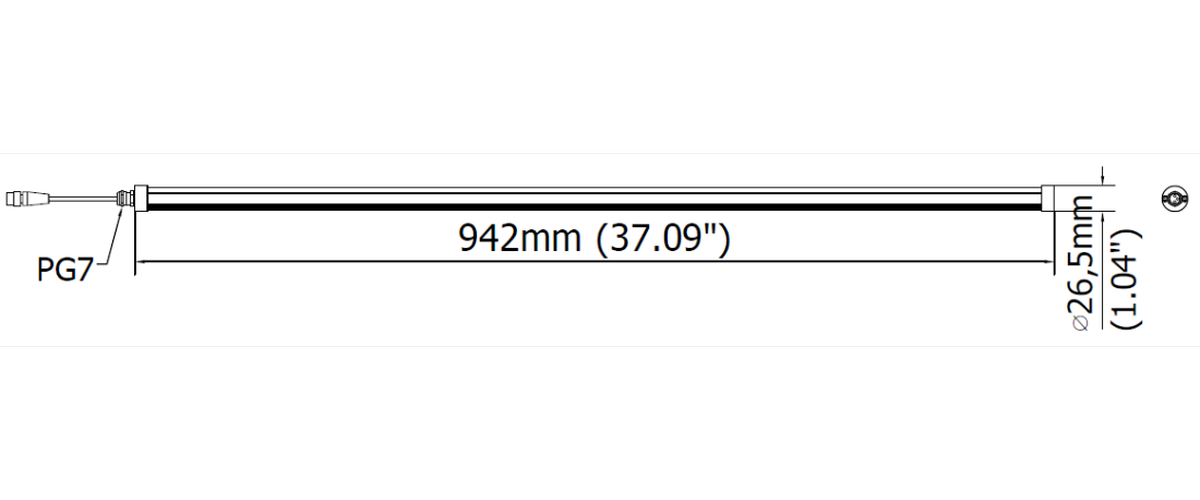

- Length
- 942 mm
- Weight
- 0.7 kg
- Finish
- Anodized Silver
Downloads
Accessories
Photometry
Flux1200 lm
Power15 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
