TRACKALPHA-PRO

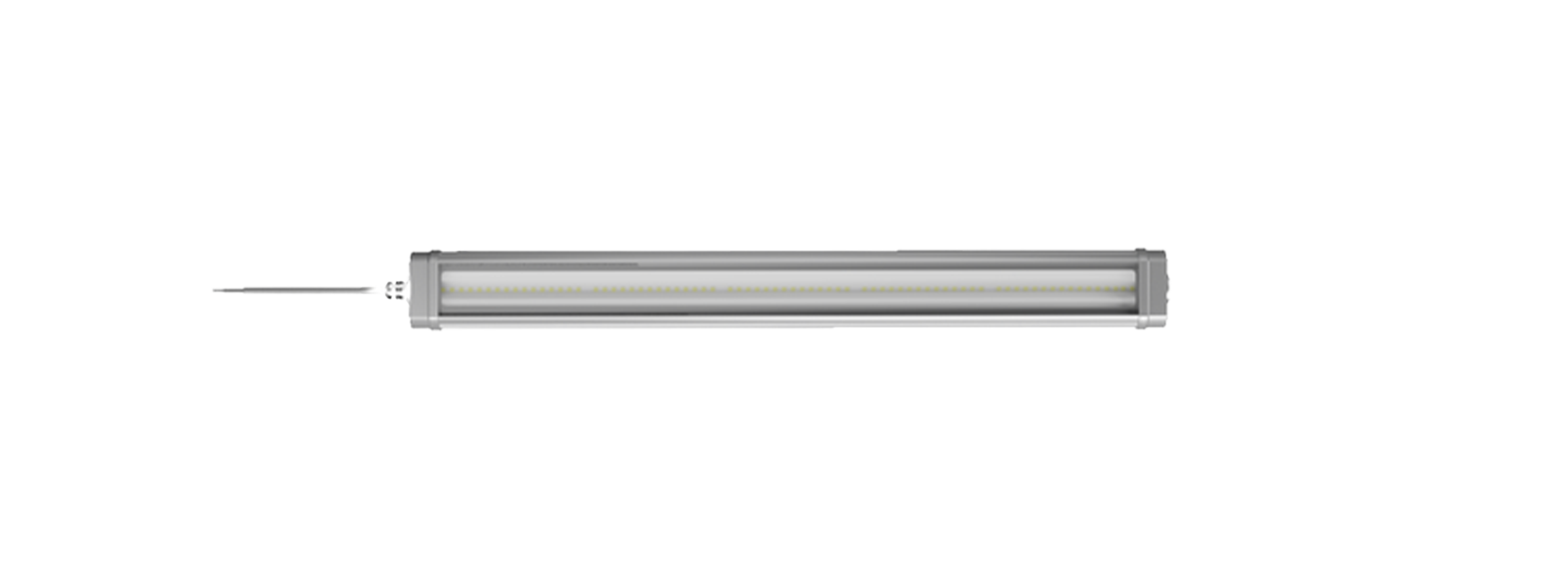

TA0521S03W — CCEA Lights LED machine light
TRACKALPHA-PRO, 681 mm, 32,5 W, 24 Vdc, IP67- IP69, 120°, 5000K 3STEP MacAdam, PVC Cable 2x 0,75 mm² (19 AWG) 3 m
Power32.5 W24 Vdc
Flux3770 lm116 lm/W
Optics120°IP67 - IP69
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67 - IP69
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 2x 0,75 mm² (19 AWG) · 3 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- FROSTED TEMPERED GLASS

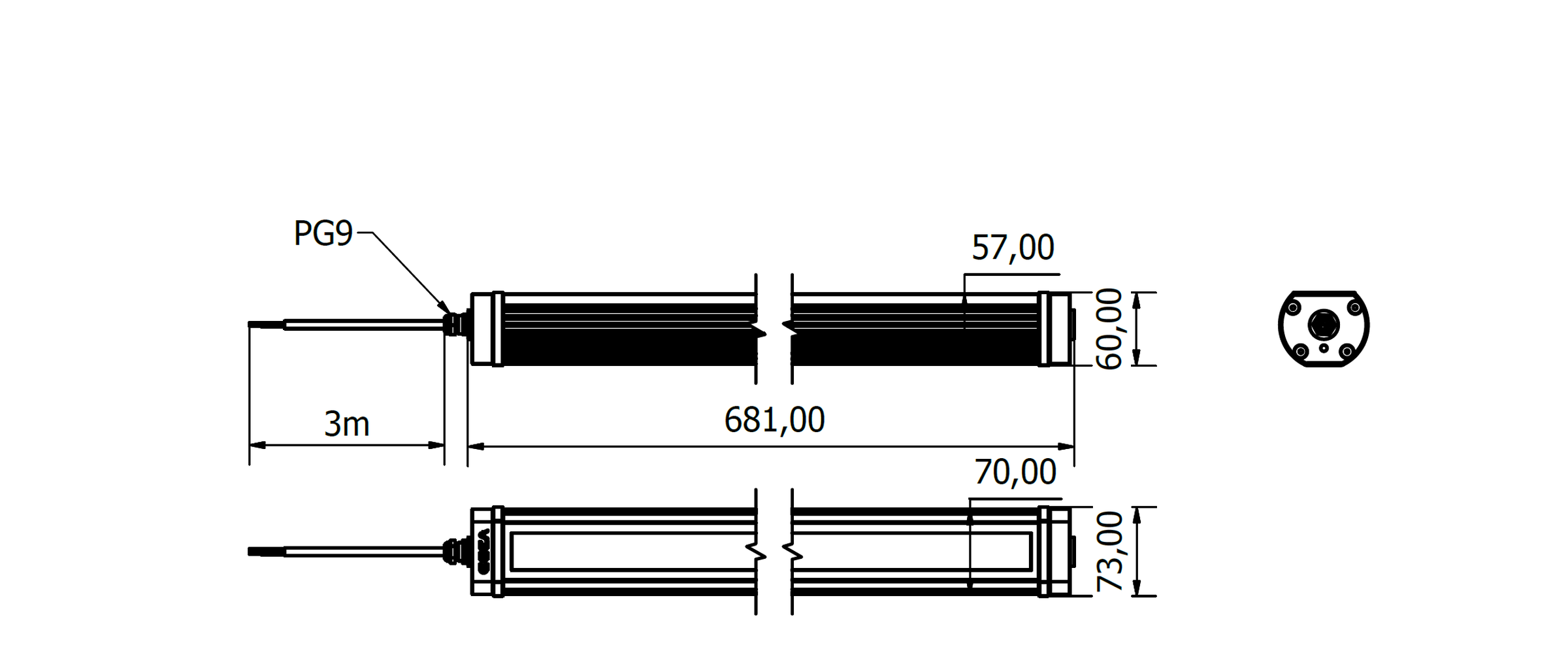

- Length
- 681 mm
- Weight
- 2.47 kg
- Finish
- Anodized Silver
Downloads
Accessories
CONNECTORS
N13110001040302
M12-T female connector 4-pin for Ø 8-10mm cable
FIXINGS
TAFX02
Side bracket kit in stainless steel - 90° angle adjustment
FIXINGS
B03
Magnetic base with screw, 48mm diameter

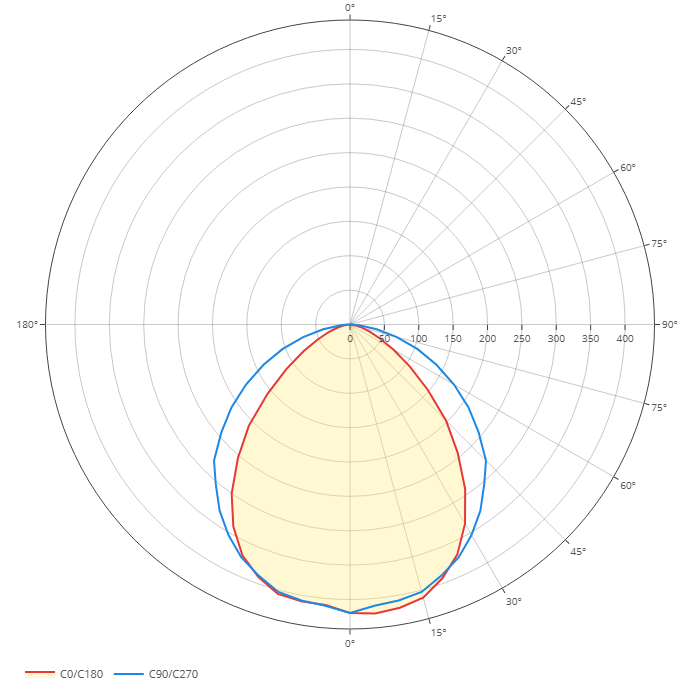

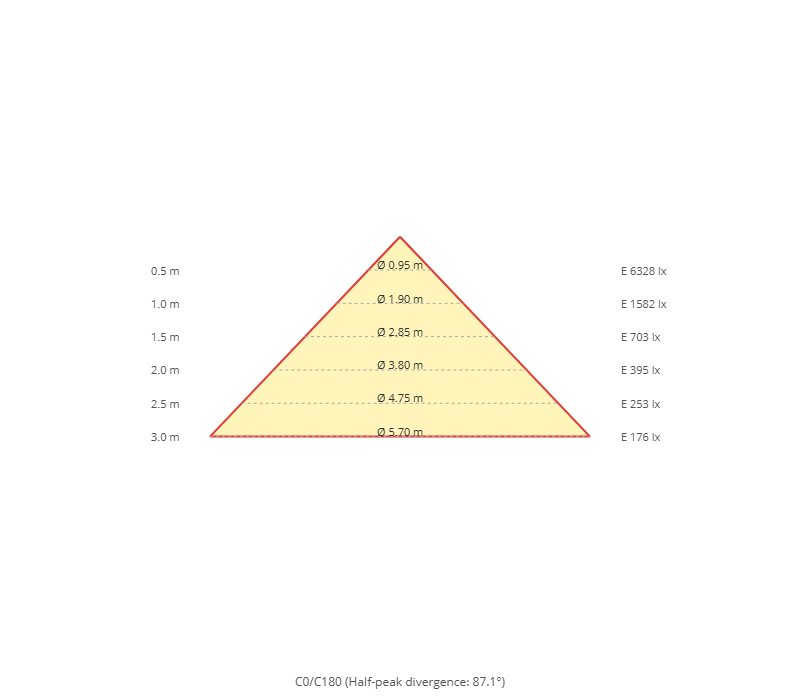

Photometry
Flux3770 lm
Power32.5 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
cURus
North American certification for low-voltage luminaires. Mandatory for the USA and Canada markets
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
