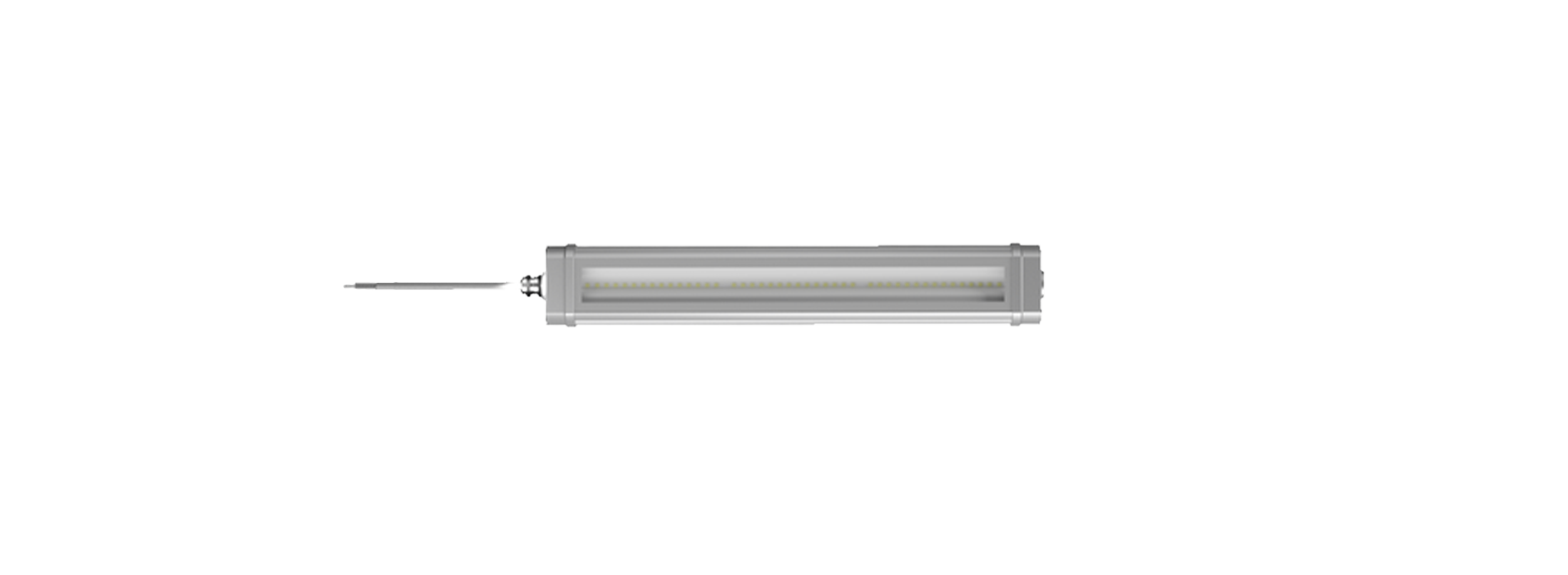

TA0324S02 — CCEA Lights LED machine light
TRACKALPHA-PRO, 441 mm, 19.5 W, 100 ÷ 120 VAC, IP67, 120°, 5000K 3STEP MacAdam, PVC Cable 3G 1 mm² (18 AWG) 3 m
Power19.5 W100 ÷ 120 VAC
Flux1950 lm100 lm/W
Optics120°IP67
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 3G 1 mm² (18 AWG) · 3 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- FROSTED TEMPERED GLASS

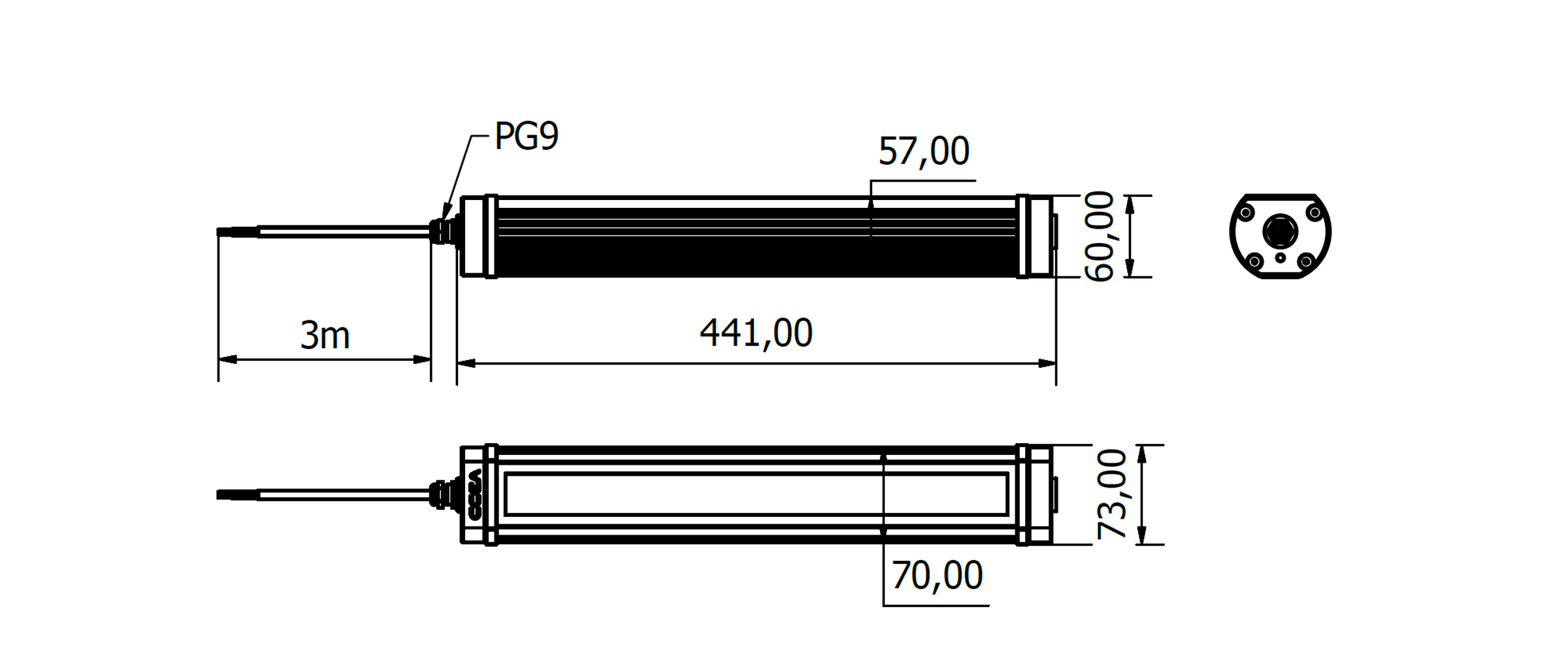

- Length
- 441 mm
- Weight
- 1.83 kg
- Finish
- Anodized Silver
Downloads
Accessories
FIXINGS
TAFX02
Side bracket kit in stainless steel - 90° angle adjustment
FIXINGS
B03
Magnetic base with screw, 48mm diameter
EXTENSIONS
M12AFC5
Pre-assembled cable M12-A female 4-pin - 5m length - UL certified

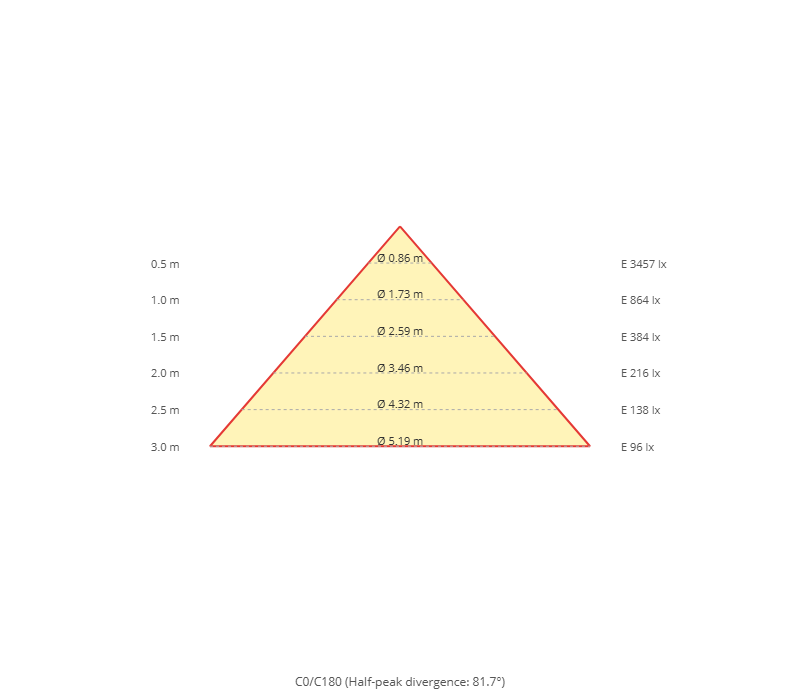

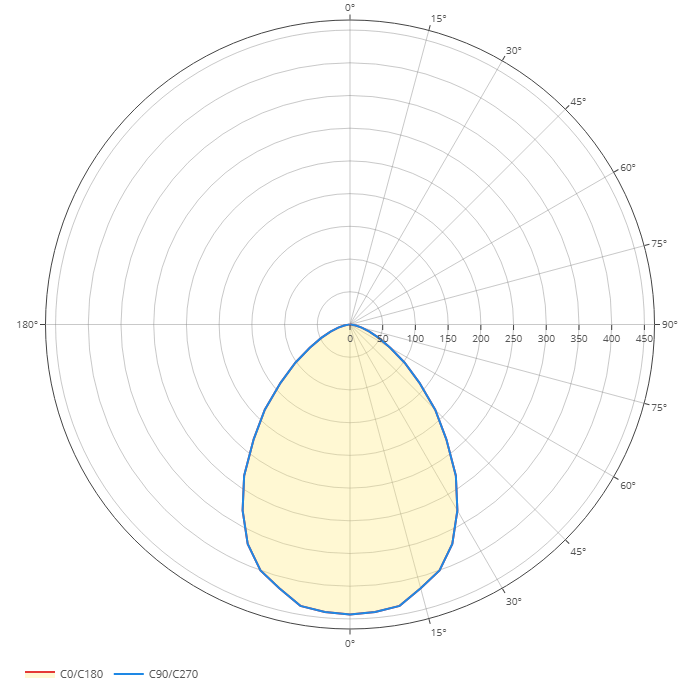

Photometry
Flux1950 lm
Power19.5 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
cURus
North American certification for low-voltage luminaires. Mandatory for the USA and Canada markets
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
