TRACKALPHA-PRO

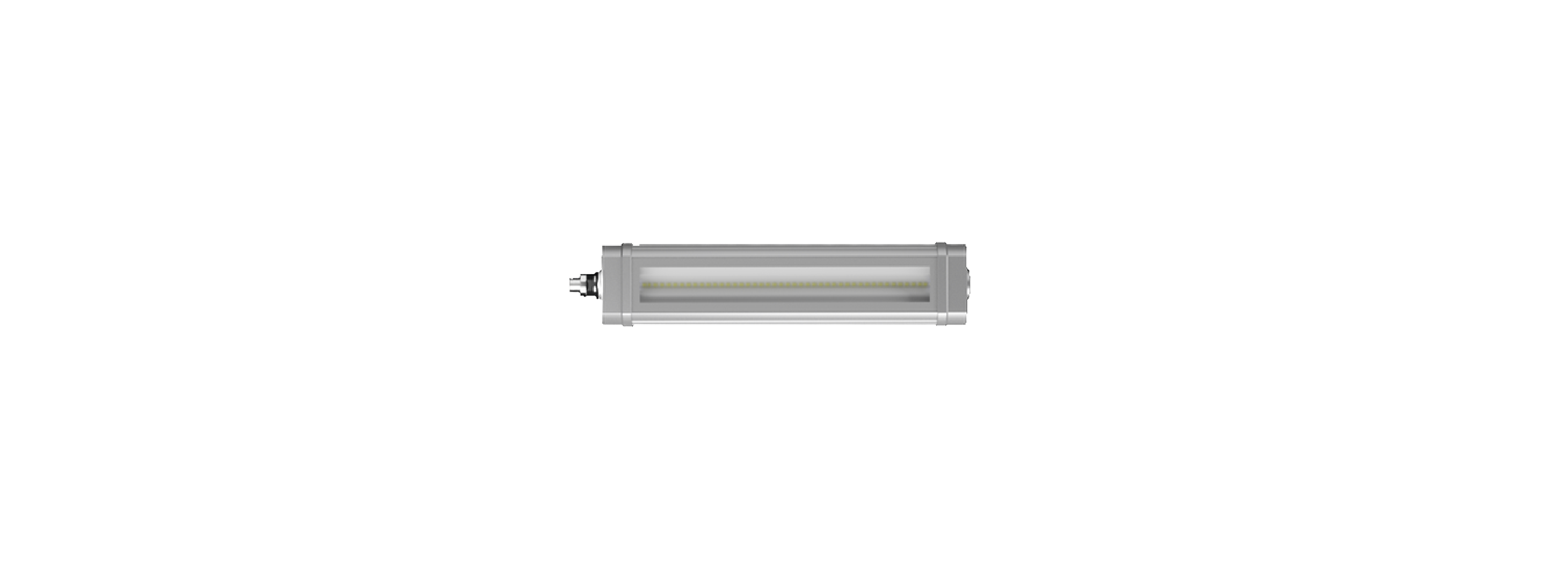

TA0221S02W — CCEA Lights LED machine light
TRACKALPHA-PRO, 321 mm, 13 W, 24 Vdc, IP67, 120°, 5000K 3STEP MacAdam, M12T-4P Male connector
Power13 W24 Vdc
Flux1510 lm116.15 lm/W
Optics120°IP67
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Connector · M12T-4P Male
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- FROSTED TEMPERED GLASS

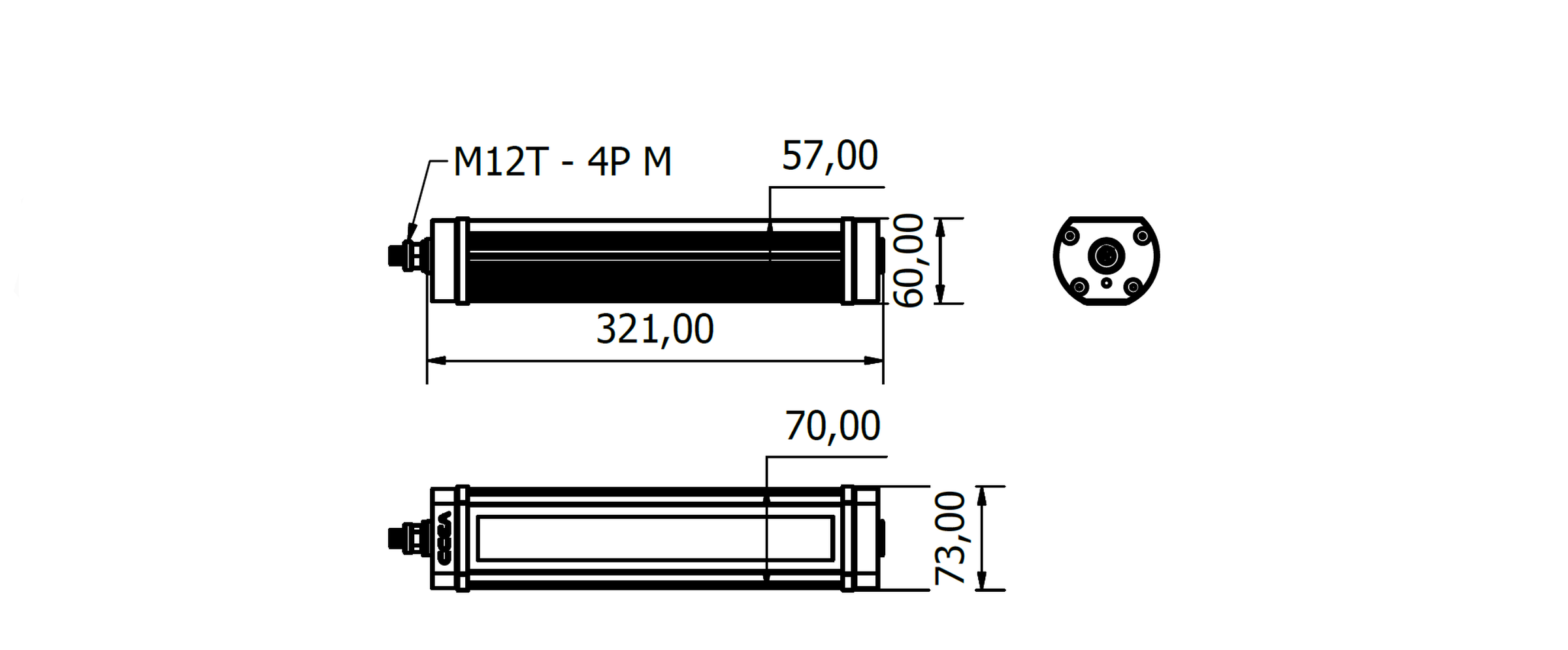

- Length
- 321 mm
- Weight
- 1.25 kg
- Finish
- Anodized Silver
Downloads
Accessories
CONNECTORS
N13110001040302
M12-T female connector 4-pin for Ø 8-10mm cable
FIXINGS
TAFX02
Side bracket kit in stainless steel - 90° angle adjustment
FIXINGS
B03
Magnetic base with screw, 48mm diameter

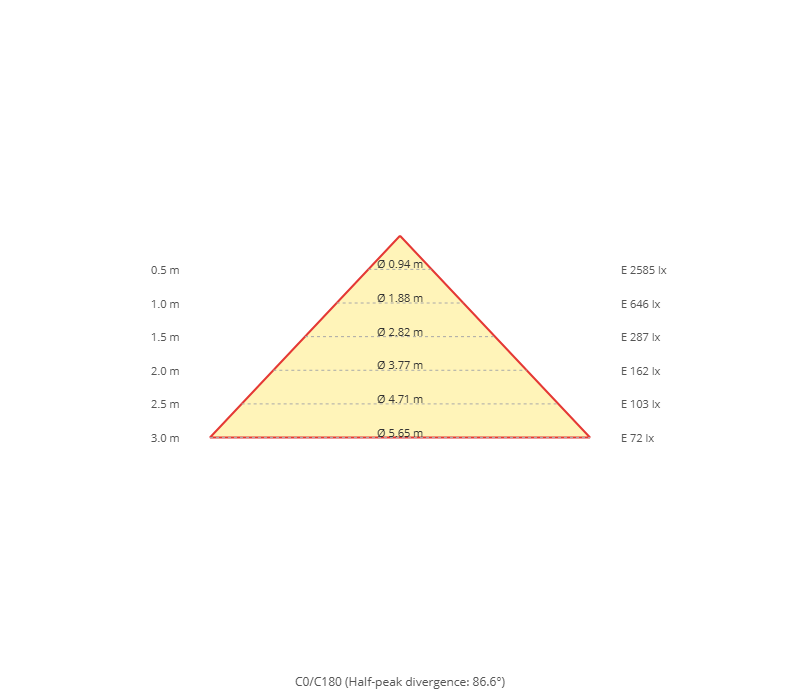

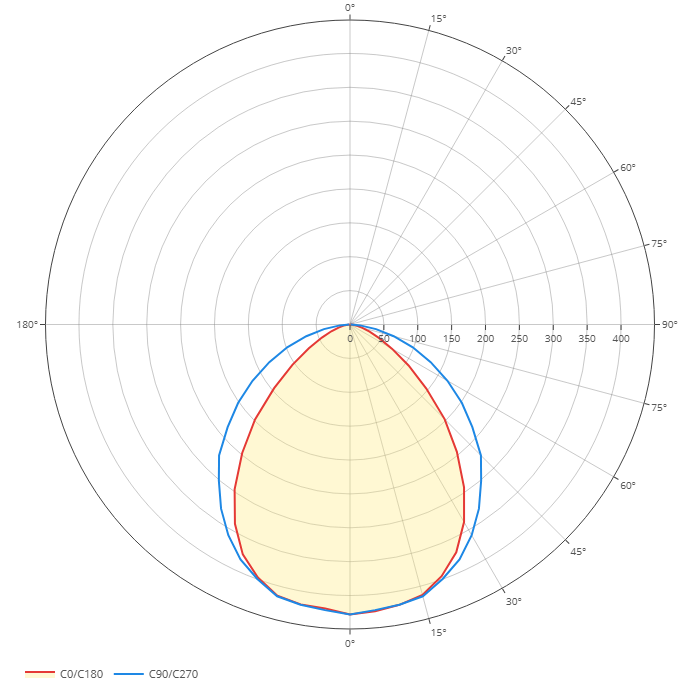

Photometry
Flux1510 lm
Power13 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
cURus
North American certification for low-voltage luminaires. Mandatory for the USA and Canada markets
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
