FIXINGS
SYFX01
Stainless steel side bracket kit - Angle adjustment 100°
SYRMA

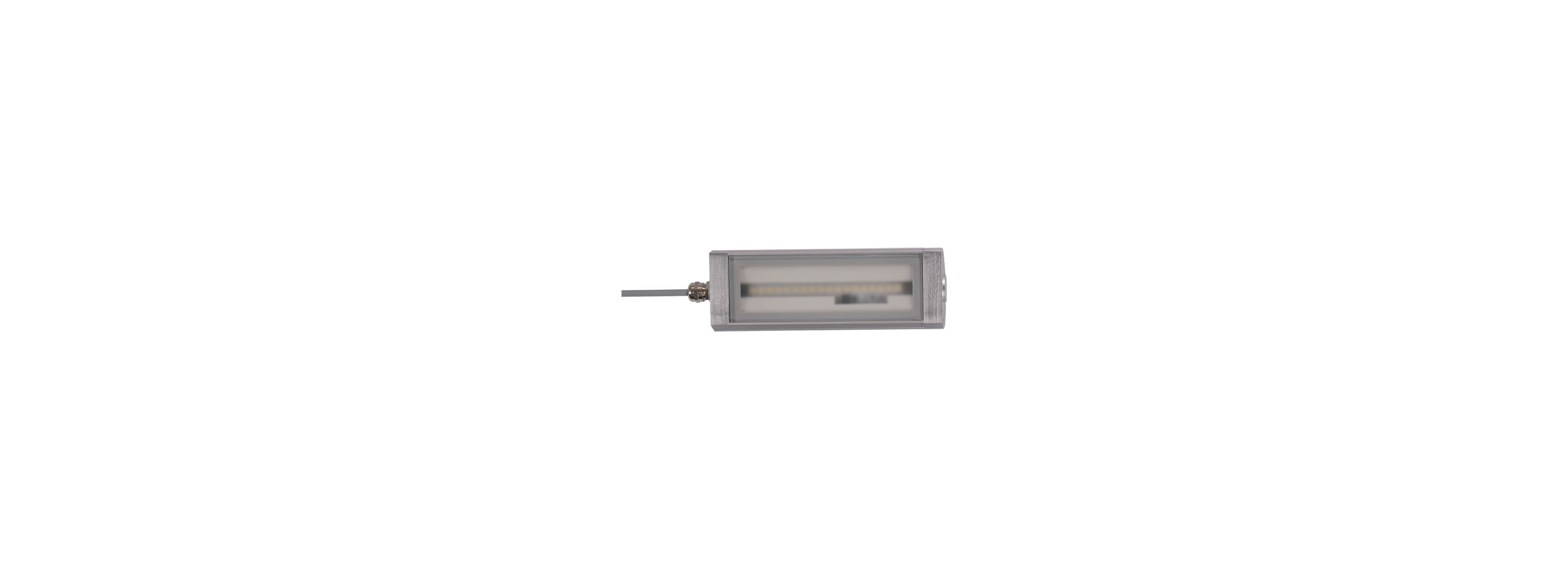

SY0121S02 — CCEA Lights LED machine light
SYRMA, 184 mm, 6,5 W, 24 Vdc, IP69, 120°, 5000K 3STEP MacAdam, PVC cable 2x 0,75 mm² (19 AWG) 3 m
Power6.5 W24 Vdc
Flux650 lm100 lm/W
Optics120°IP69
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP69
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 2x 0,75 mm² (19 AWG) · 3 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS

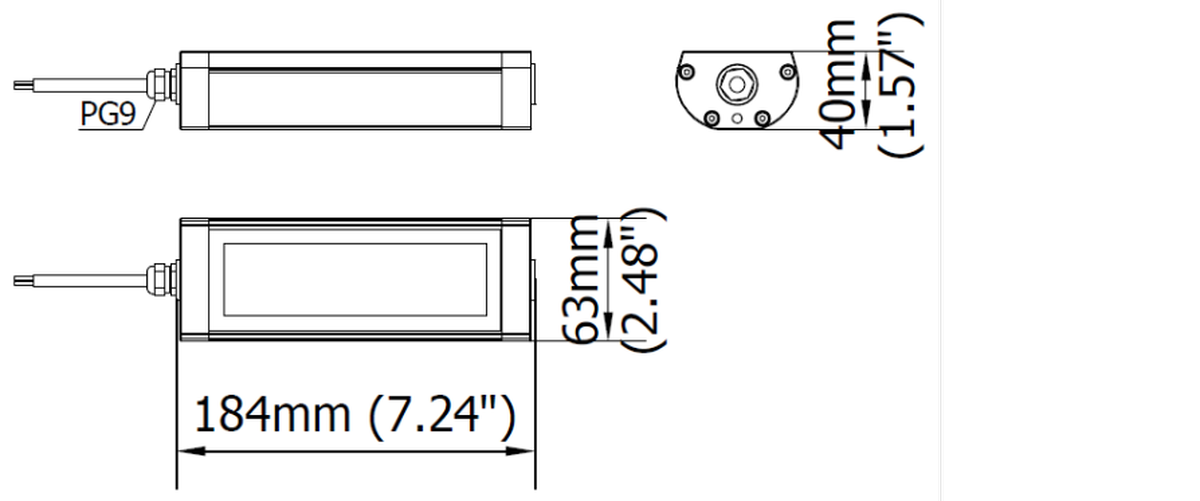

- Length
- 184 mm
- Weight
- 0.682 kg
- Finish
- Anodized Silver
Downloads
Accessories
FIXINGS
B03
Magnetic base with screw, 48mm diameter
EXTENSIONS
M12AFC5
Pre-assembled cable M12-A female 4-pin - 5m length - UL certified

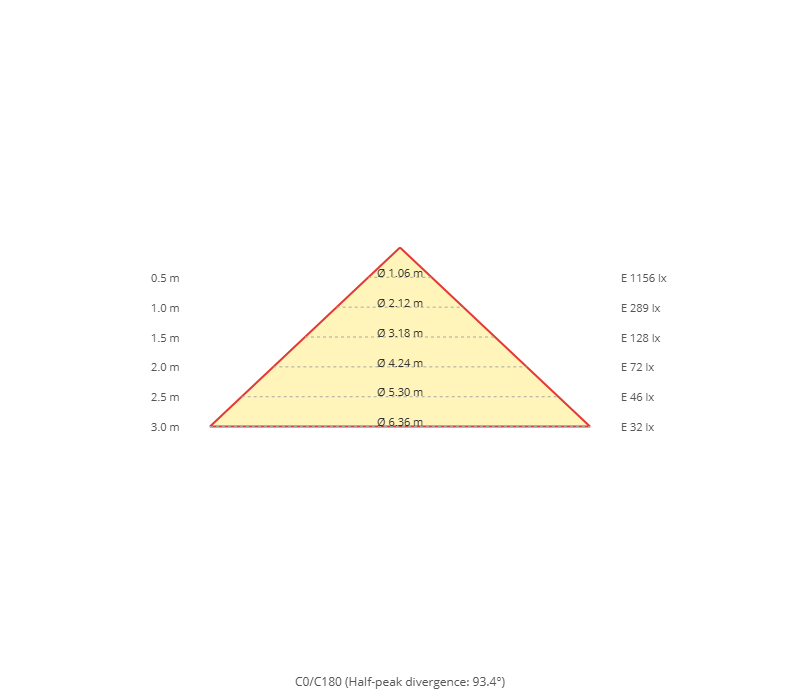

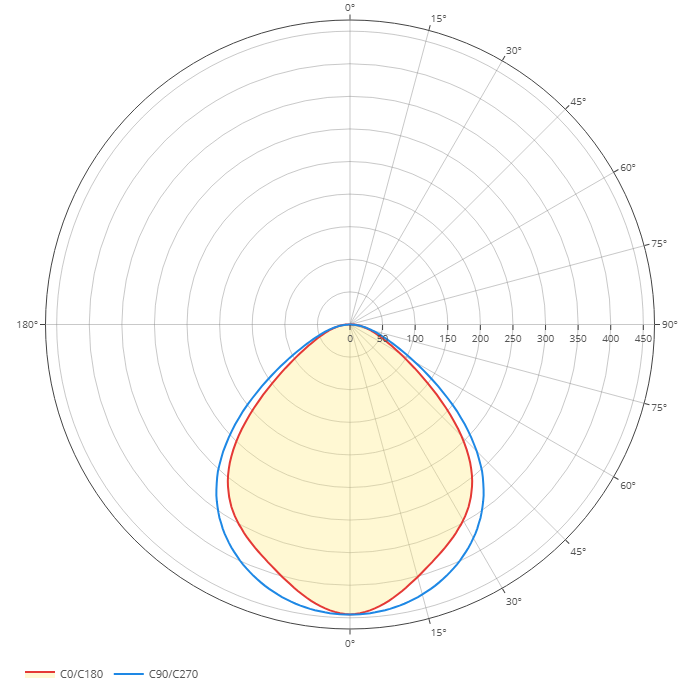

Photometry
Flux650 lm
Power6.5 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
