SIRIO Q
SR0921Q05 — CCEA Lights LED machine light

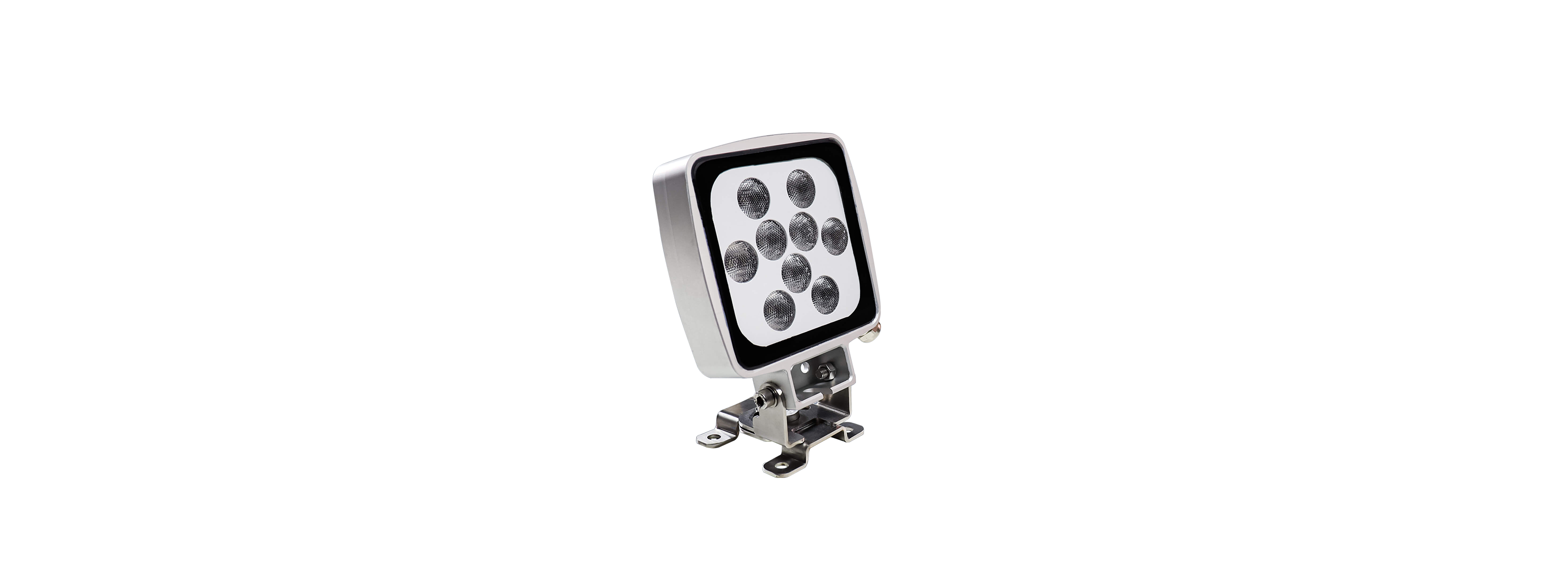

SIRIO Q, 16 W, 24 Vdc, IP67- IP69, 40°, 5000K 3STEP MacAdam, PVC cable 2x 0.75 mm² (19 AWG) 3 m
Power16 W24 Vdc
Flux1750 lm109.38 lm/W
Optics40°IP67 - IP69
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67 - IP69
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 2x 0,75 mm² (19 AWG) · 3 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS
- Weight
- 0.53 kg
- Finish
- Anodized Silver
Downloads

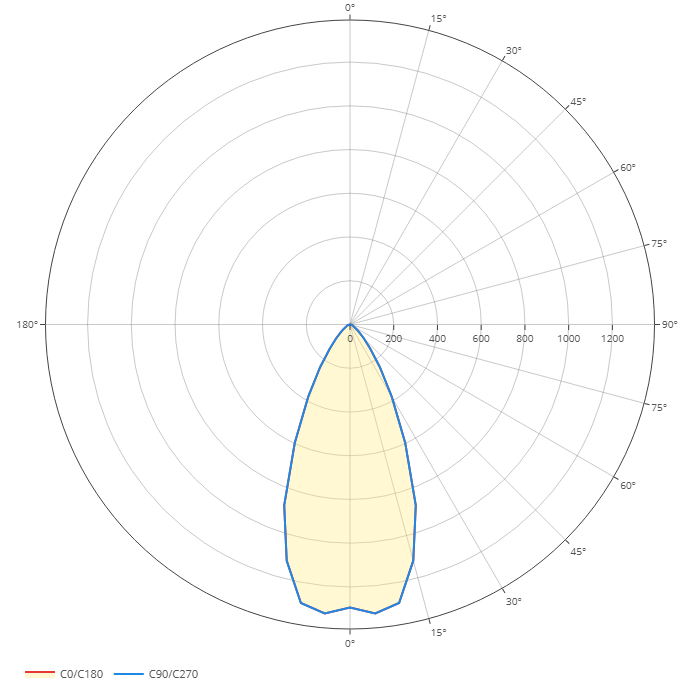

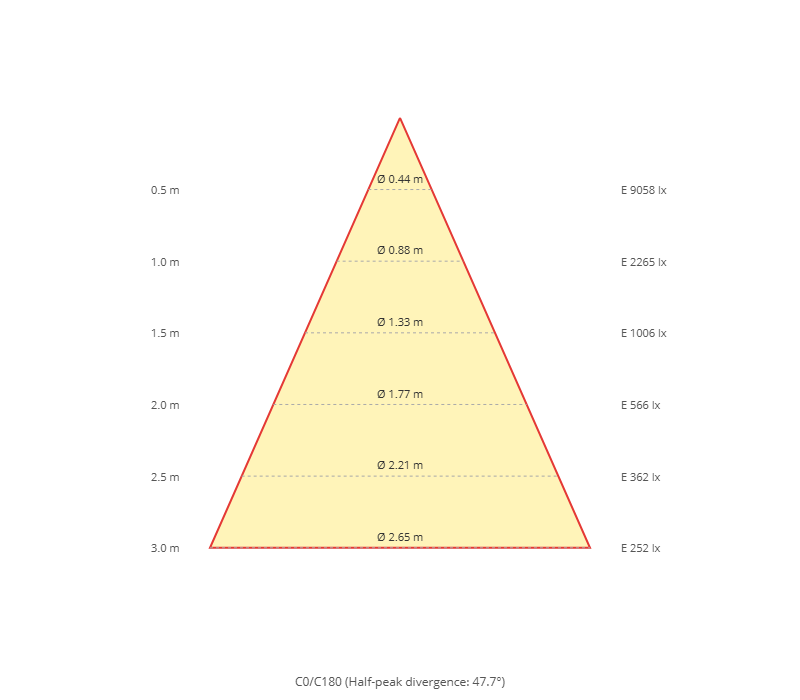

Photometry
Flux1750 lm
Power16 W
Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
Certifications
cURus
North American certification for low-voltage luminaires. Mandatory for the USA and Canada markets
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
