SIRIO, 12 W, 24 Vdc, IP67, 40°, 5000K 3STEP MacAdam, PUR cable 2x 0.34 mm² (22 AWG) with M12-A 3P Male 2.2 m
SIRIO

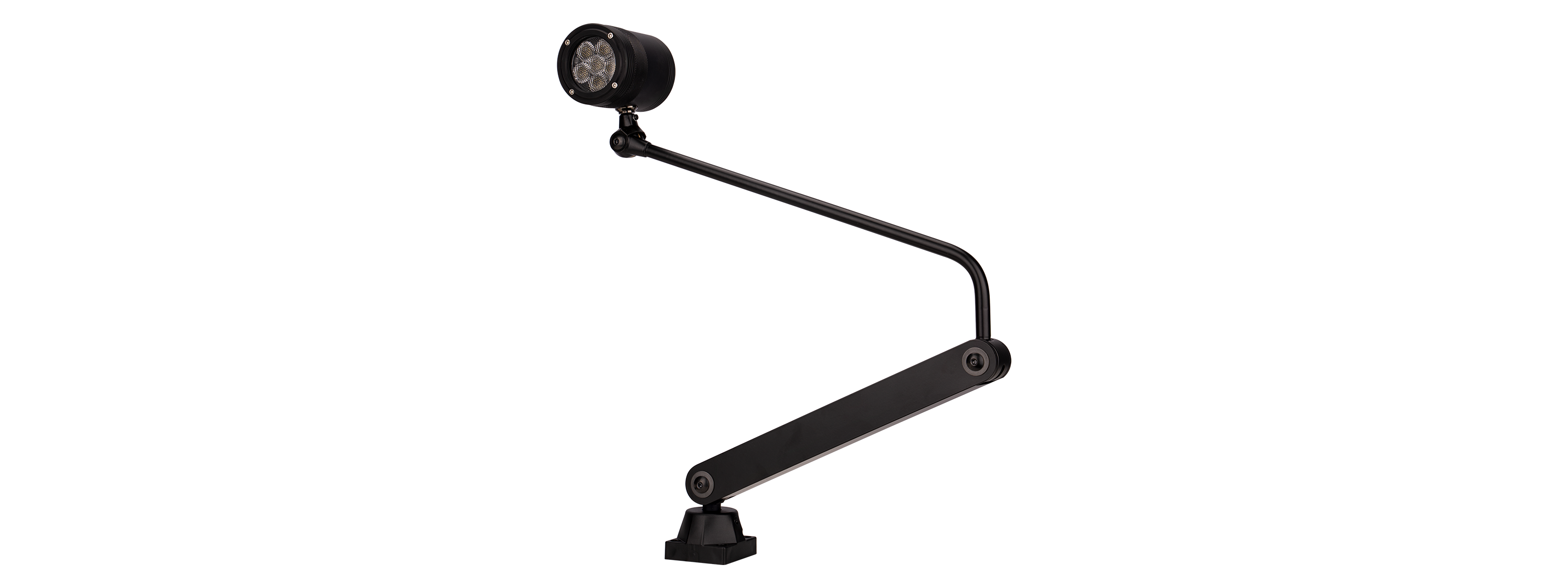

SR0621BL1 — CCEA Lights LED machine light

SIRIO, 12 W, 24 Vdc, IP67, 40°, 5000K 3STEP MacAdam, PUR cable 2x 0.34 mm² (22 AWG) with M12-A 3P Male 2.2 m

Power12 W24 Vdc
Flux630 lm52.5 lm/W
Optics40°IP67
Light colour5000 K3STEP MacAdam · CRI 80

Operational data

IP protection
IP67
IK resistance
IK06
Wiring
Cable · PUR 2x 0,34 mm² (22 AWG) with M12-A 3P Male · 2.2 m

Construction

Weight
1.8 kg
Finish
Black Anodized
Dimensions

Downloads

Request information

Accessories

CLAMP04

FIXINGS

CLAMP04

Metal clamp for 60x60mm base

B02

FIXINGS

B02

Magnetic base with screw for 60x60mm base

SR23018W

DRIVER

SR23018W

AC/DC Converter 100-240Vac / 24Vdc, 18W

Photometry

Flux630 lm
Power12 W
Half-peak divergence—
Colour temperature5000 K

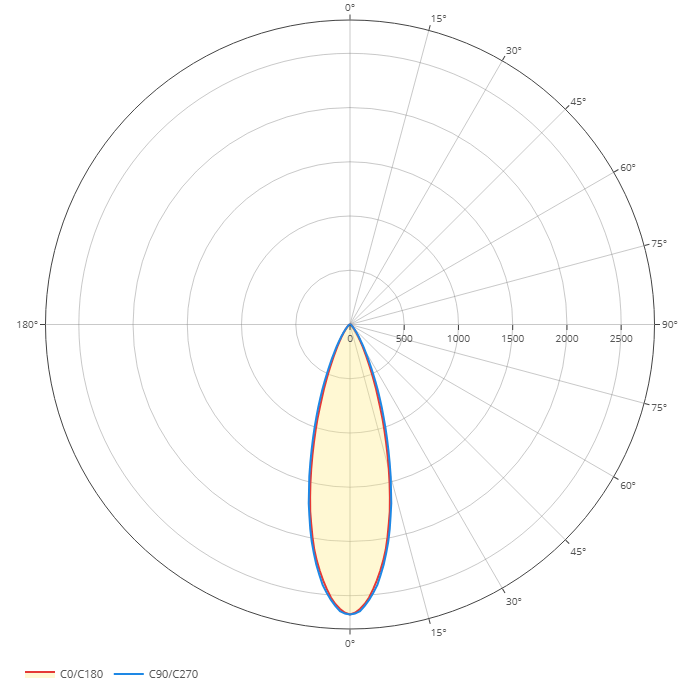

Polar diagram
Polar diagram

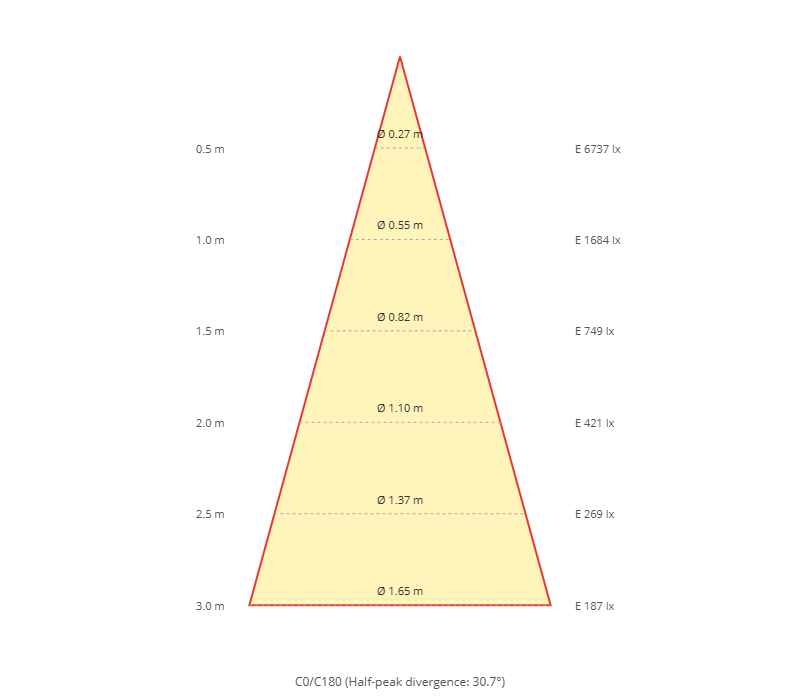

Cone diagram
Cone diagram

Isolines · Plane 1 × 1 m

Plane
Isoline step
Processing photometric file…

Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
