FIXINGS
CLAMP04
Metal clamp for 60x60mm base
SIRIO

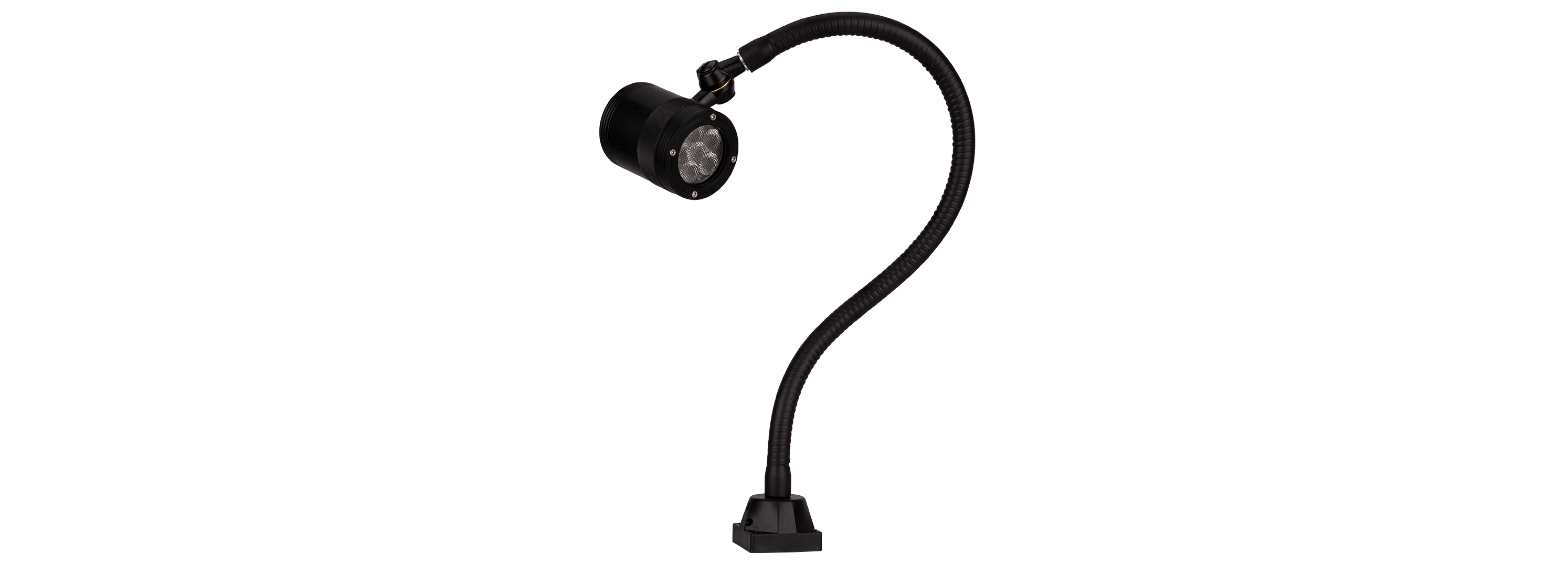

SR0321BF5 — CCEA Lights LED machine light
SIRIO, 6 W, 24 Vdc, IP67, 40°, 5000K 3STEP MacAdam, M12A-4P Male Connector
Power6 W24 Vdc
Flux450 lm75 lm/W
Optics40°IP67
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67
- IK resistance
- IK06
- Wiring
- Connector · M12A-4P Male
- Dimmable
- Yes
Construction
- Weight
- 1.8 kg
- Finish
- Black Anodized
Downloads
Accessories
FIXINGS
B02
Magnetic base with screw for 60x60mm base
DRIVER
SR23018W
AC/DC Converter 100-240Vac / 24Vdc, 18W

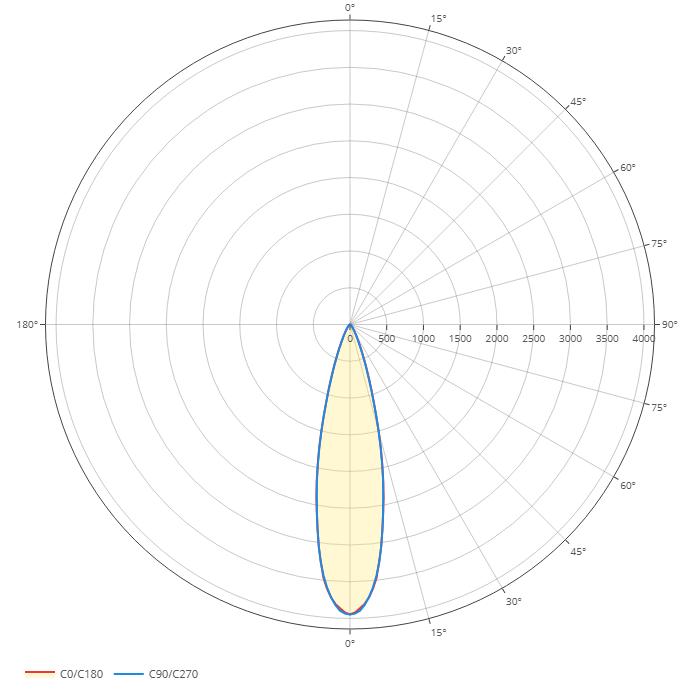

Photometry
Flux450 lm
Power6 W

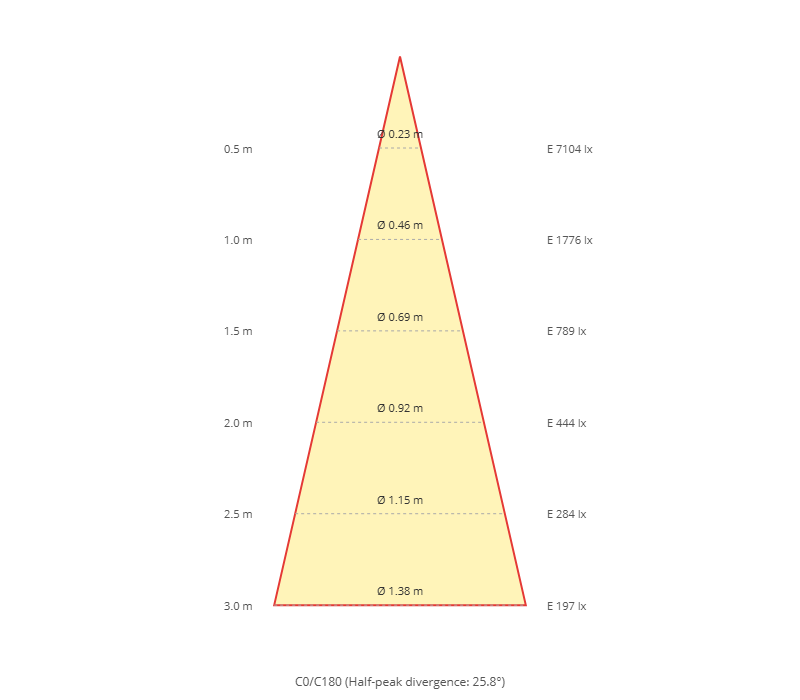

Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
