RIGEL

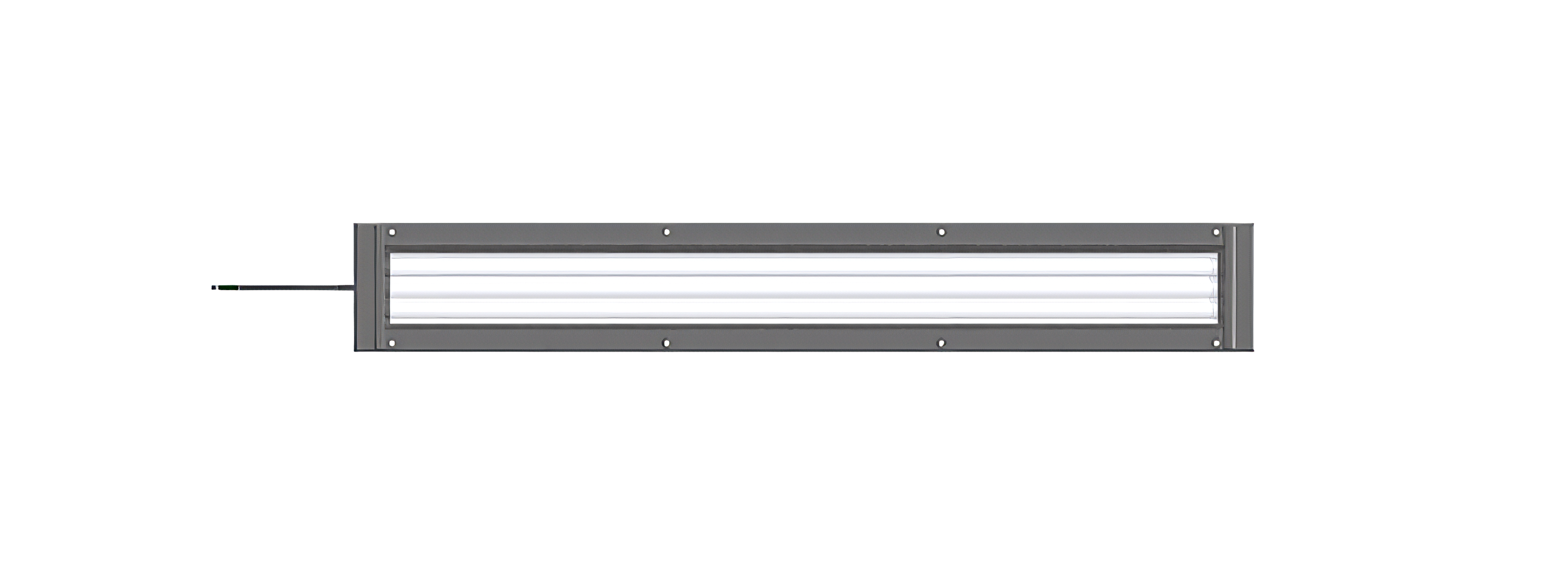

RI0332S03 — CCEA Lights LED machine light
RIGEL, 1000 mm, 60 W, 220 ÷ 240 Vac, IP67, 150°, 6500K 3STEP MacAdam, PUR 3G 0.75 mm² (19 AWG) cable 20 m
Power60 W220 ÷ 240 Vac
Flux4500 lm75 lm/W
Optics150°IP67
Light colour6500 K3STEP MacAdam · CRI 90
Operational data
- IP protection
- IP67
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PUR 3G 0.75 mm² (19 AWG) · 20 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS
- Length
- 1000 mm
- Weight
- 4.75 kg
- Finish
- Anodized Silver
Downloads

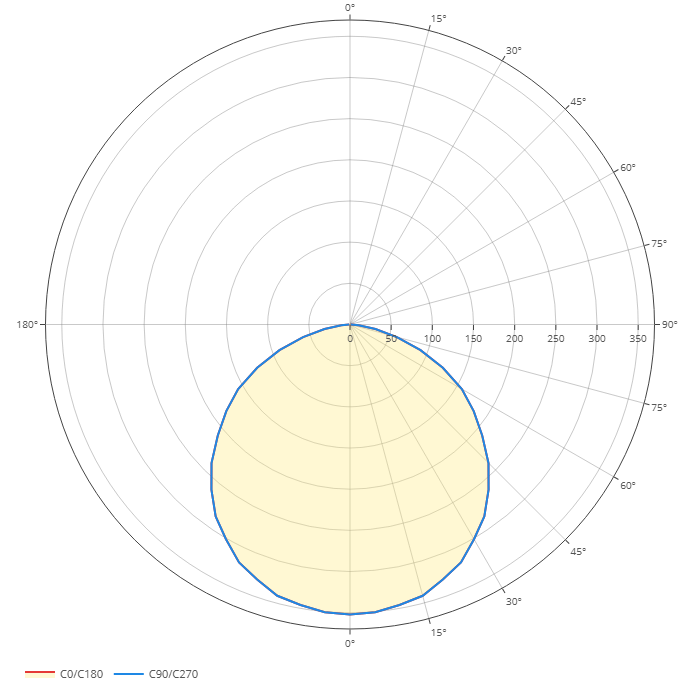

Photometry
Flux4500 lm
Power60 W
Half-peak divergence—
Colour temperature6500 K

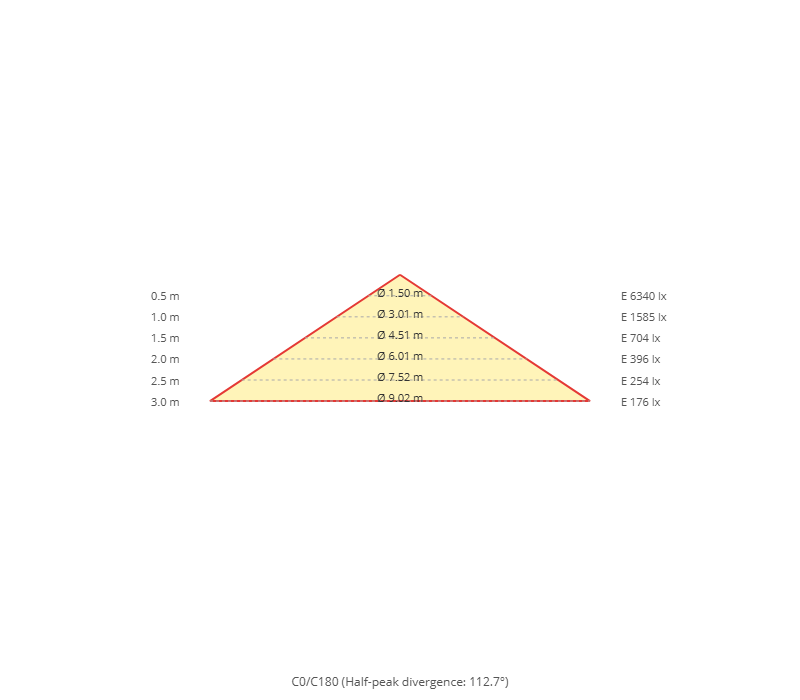

Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
