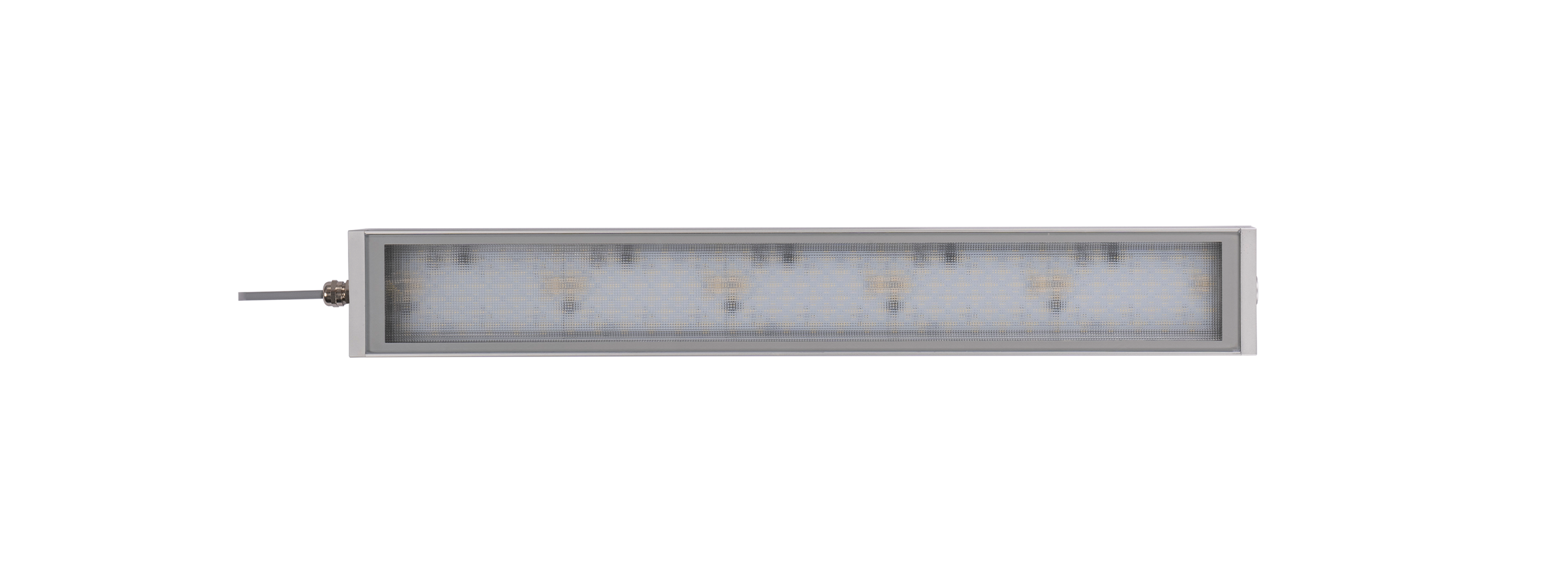

HN0521S03 — CCEA Lights LED machine light
HERIONOVA, 716 mm, 66,5 W, 24 Vdc, IP67- IP69, 120°, 5000K 3STEP MacAdam, PVC cable 2x 0,75 mm² (19 AWG) 3 m
Power66.5 W24 Vdc
Flux6000 lm90.23 lm/W
Optics120°IP67 - IP69
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67 - IP69
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 2x 0,75 mm² (19 AWG) · 3 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS

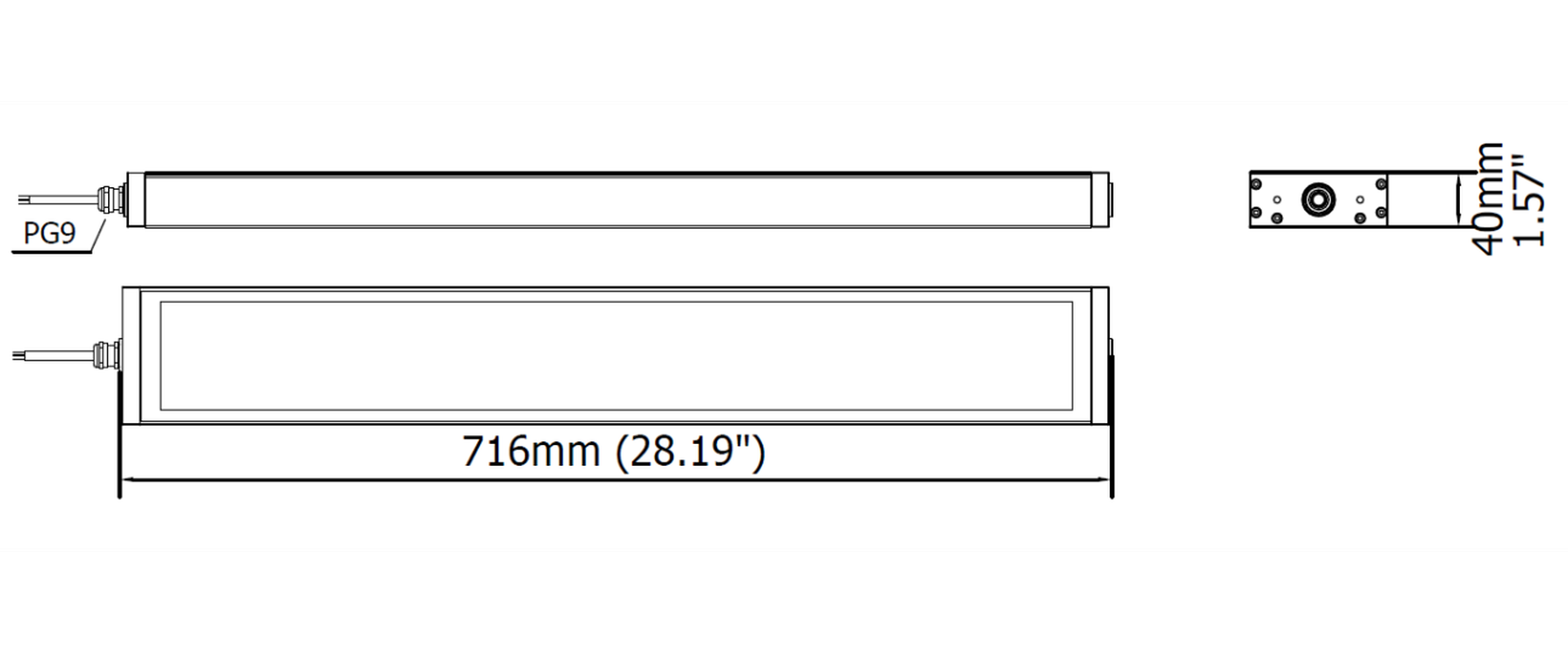

- Length
- 716 mm
- Weight
- 3.6 kg
- Finish
- Anodized Silver
Downloads
Accessories
FIXINGS
HNFX01
Stainless steel side bracket kit - 45° angle adjustment

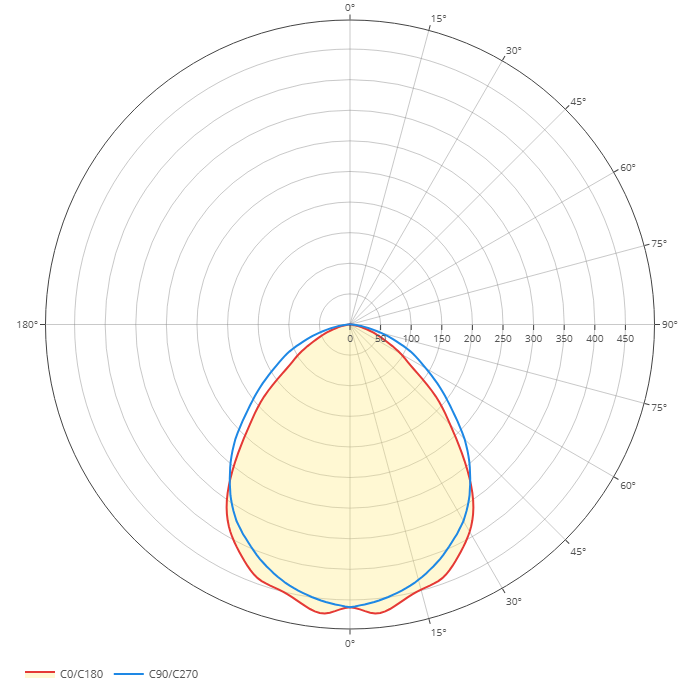

Photometry
Flux6000 lm
Power66.5 W

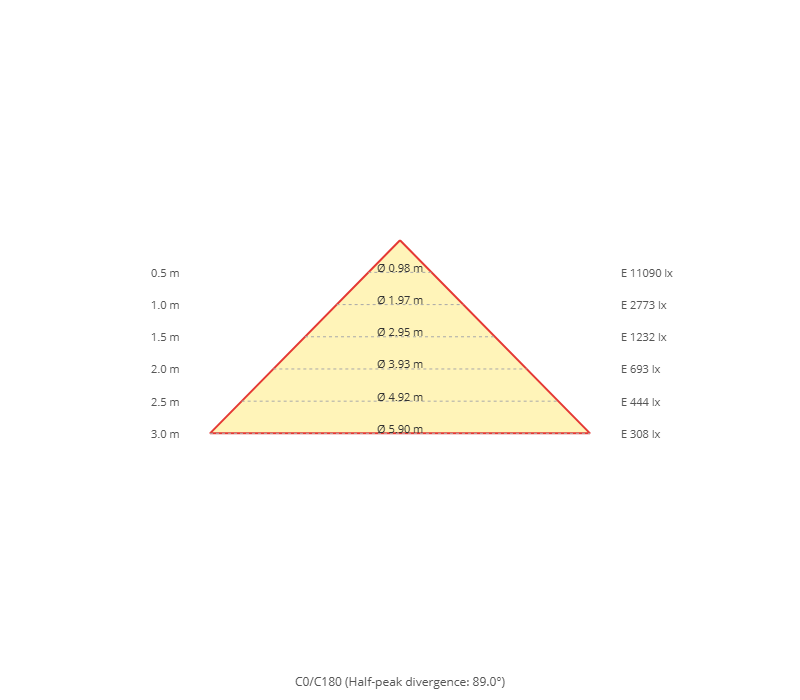

Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
