HERIONOVA
HN0121S02 — CCEA Lights LED machine light

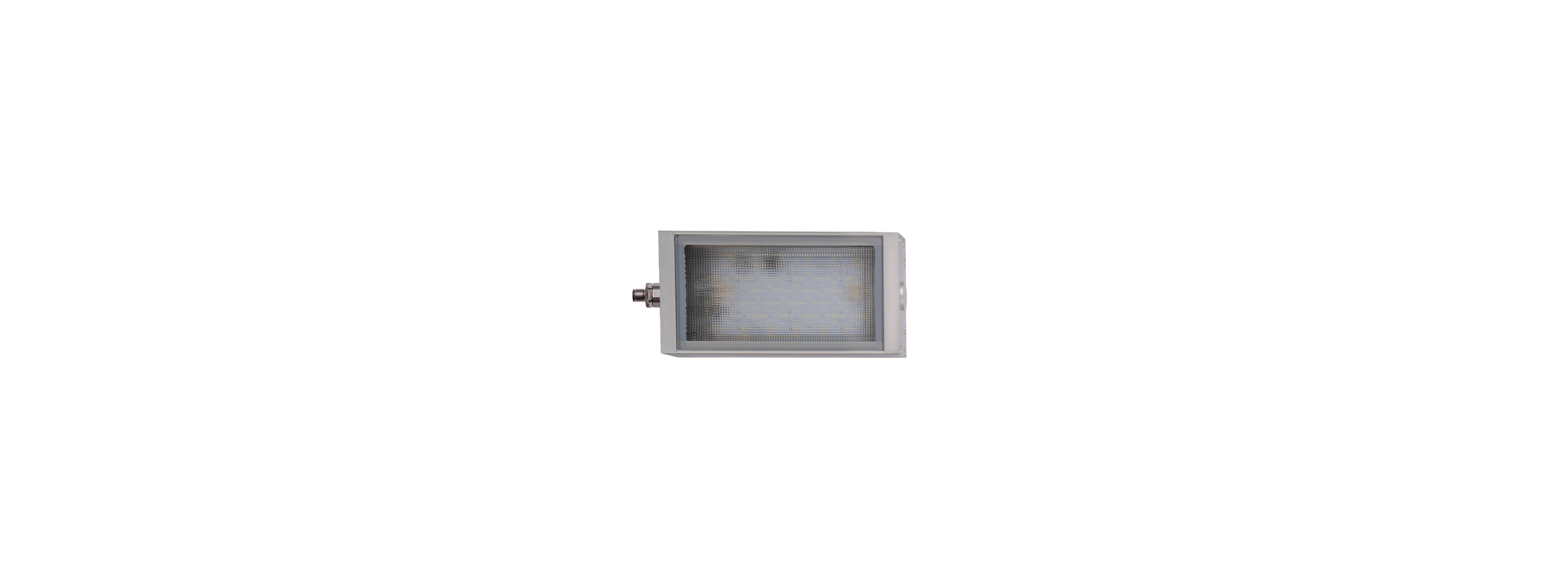

HERIONOVA, 200 mm, 13.5 W, 24 Vdc, IP67, 120°, 5000K 3STEP MacAdam, M12T-4P Male Connector
Power13.5 W24 Vdc
Flux1200 lm88.89 lm/W
Optics120°IP67
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Connector · M12T-4P Male
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS

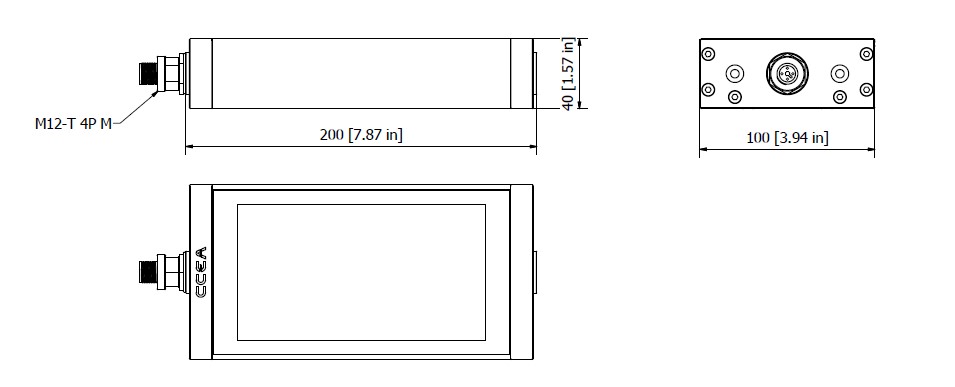

- Length
- 200 mm
- Finish
- Anodized Silver
Downloads
Accessories
FIXINGS
HNFX01
Stainless steel side bracket kit - 45° angle adjustment

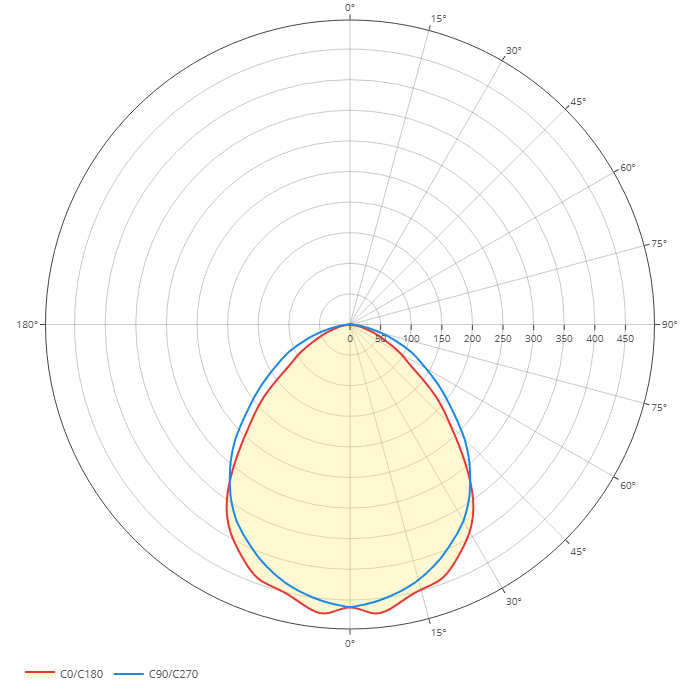

Photometry
Flux1200 lm
Power13.5 W

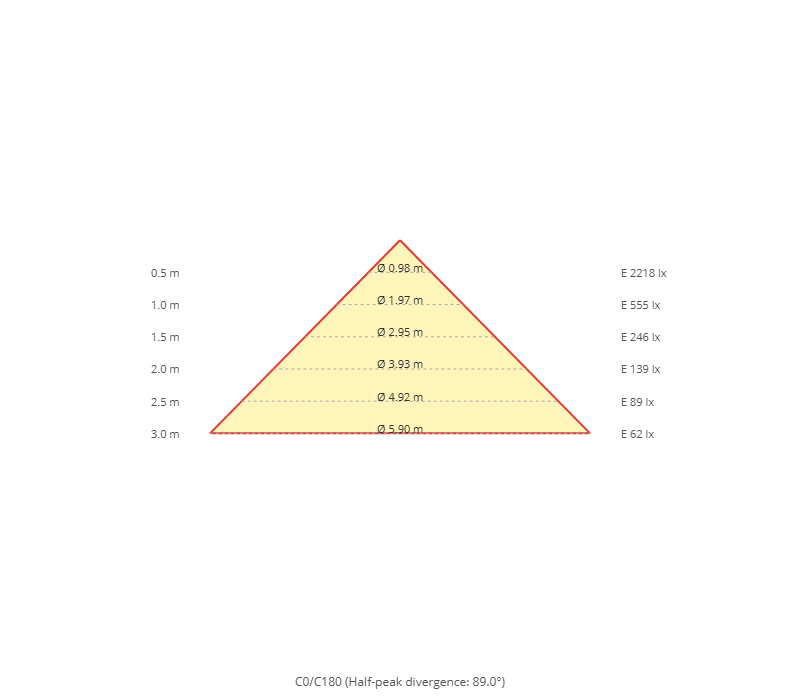

Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
