EPSYLON

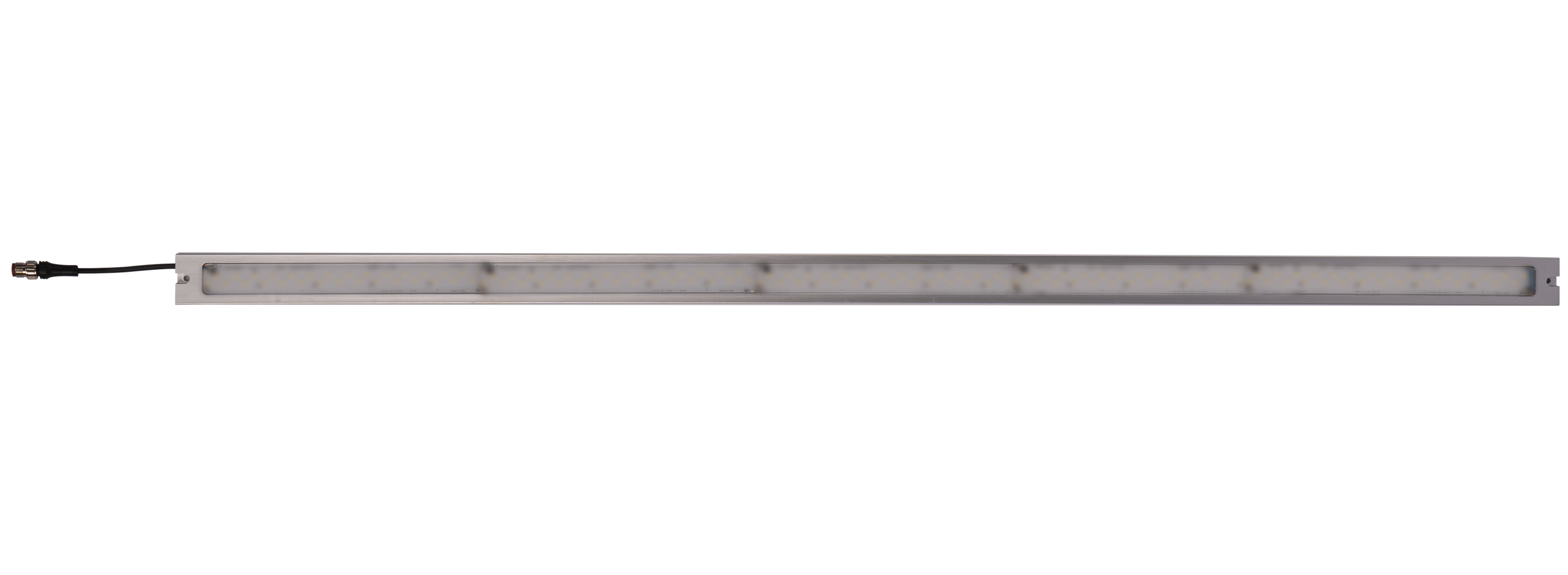

EY0521E02 — CCEA Lights LED machine light
EPSYLON, 1125 mm, 44 W, 24 Vdc, IP68, 150°, 5000K 3STEP MacAdam, PUR cable with M12-A 3P M connector 3 m
Power44 W24 Vdc
Flux3570 lm81.14 lm/W
Optics150°IP68
Light colour5000 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP68
- IK resistance
- IK06
- Wiring
- Cable · PUR cable with M12-A 3P M connector · 3 m
Construction
- Length
- 1125 mm
- Weight
- 0.85 kg
- Finish
- Anodized Silver
Downloads
Accessories
FIXINGS
EYFX01
Stainless steel swivel bracket kit - Angle adjustment 70°
EXTENSIONS
M12AFC5
Pre-assembled cable M12-A female 4-pin - 5m length - UL certified

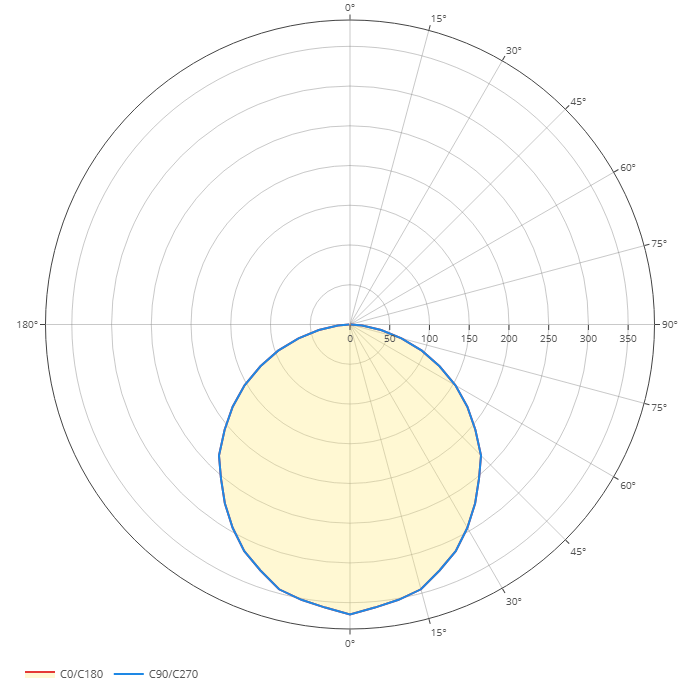

Photometry
Flux3570 lm
Power44 W

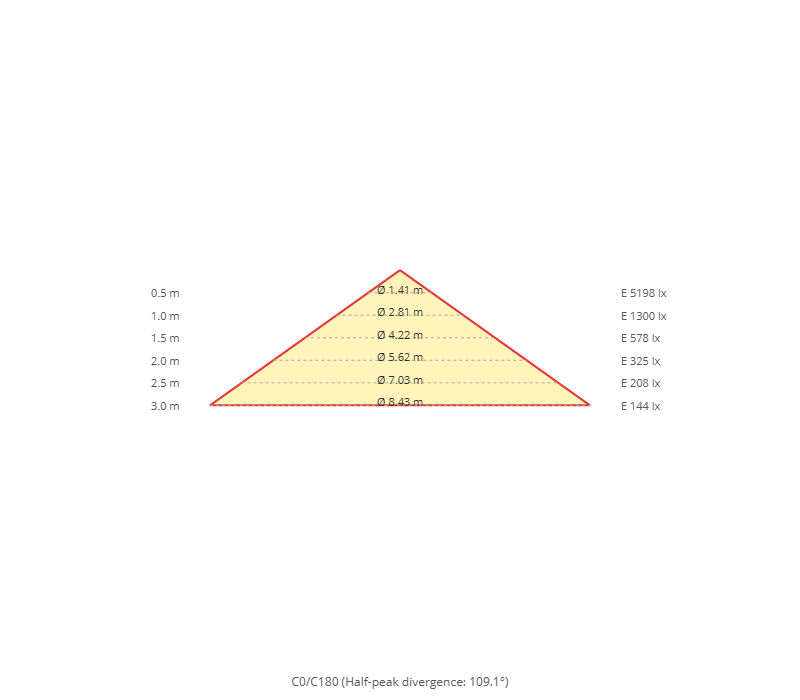

Half-peak divergence—
Colour temperature5000 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
