EX-AMYRA
AY0531S01 — CCEA Lights LED machine light

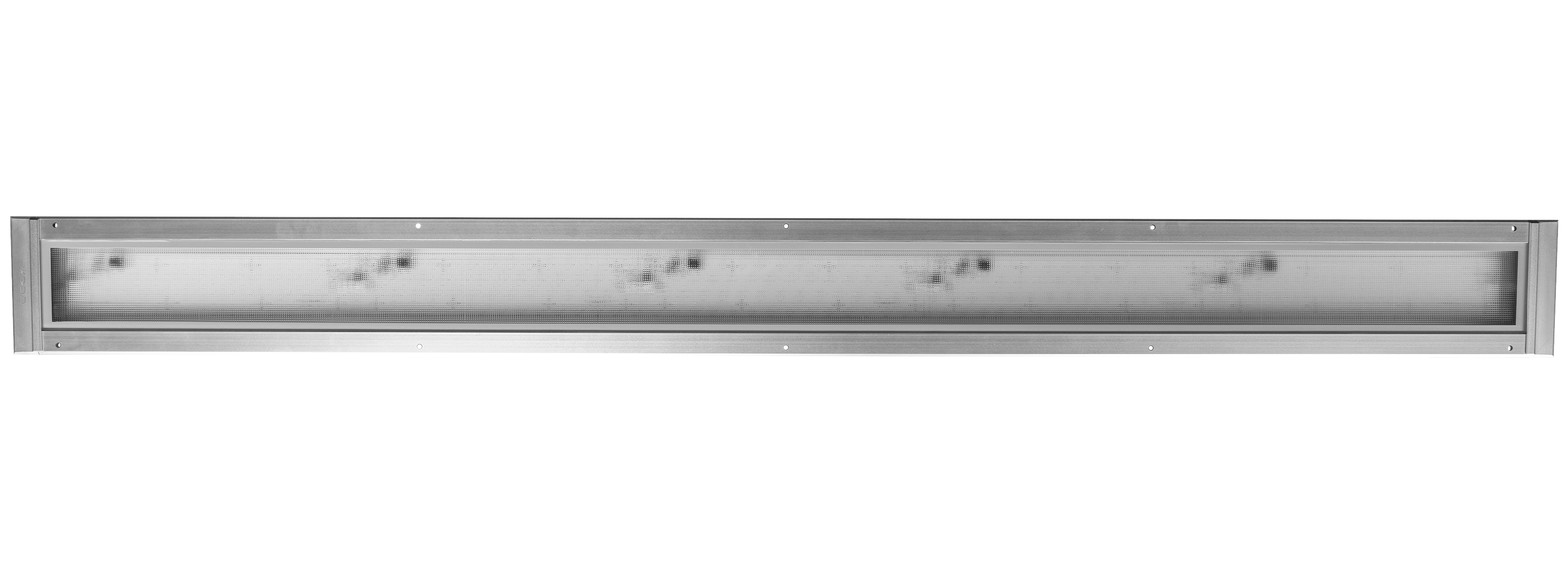

EX-AMYRA, 1598 mm, 100 W, 24 Vdc, IP67- IP69, 120°, 6500K 3STEP MacAdam, PVC Cable 2x 0.75 mm² (19 AWG) 1.5 m
Power100 W24 Vdc
Flux8900 lm89 lm/W
Optics120°IP67 - IP69
Light colour6500 K3STEP MacAdam · CRI 80
Operational data
- IP protection
- IP67 - IP69
- IK resistance
- IK06
- Operating temperature
- -20°C / +45°C
- Wiring
- Cable · PVC 2x 0,75 mm² (19 AWG) · 1.5 m
- Light source
- LED
Construction
- Body
- ANODIZED ALUMINUM
- Front protection
- TEMPERED TRANSPARENT GLASS

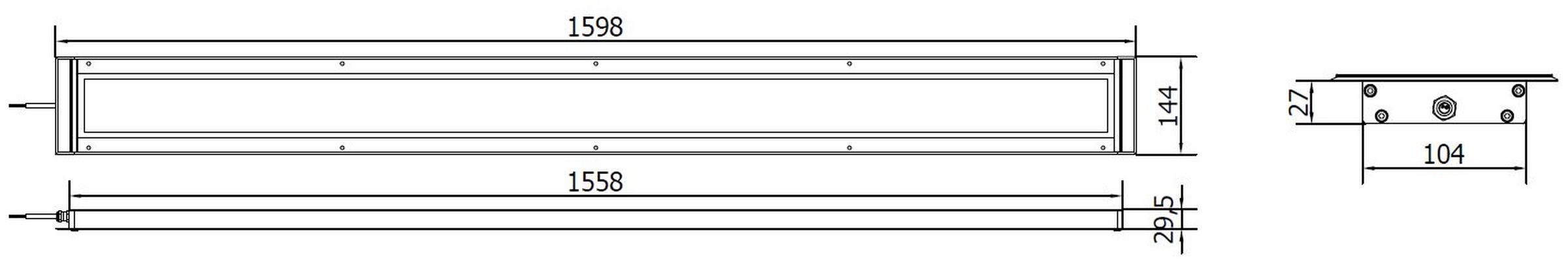

- Length
- 1598 mm
- Weight
- 5.99 kg
- Finish
- Anodized Silver
Downloads

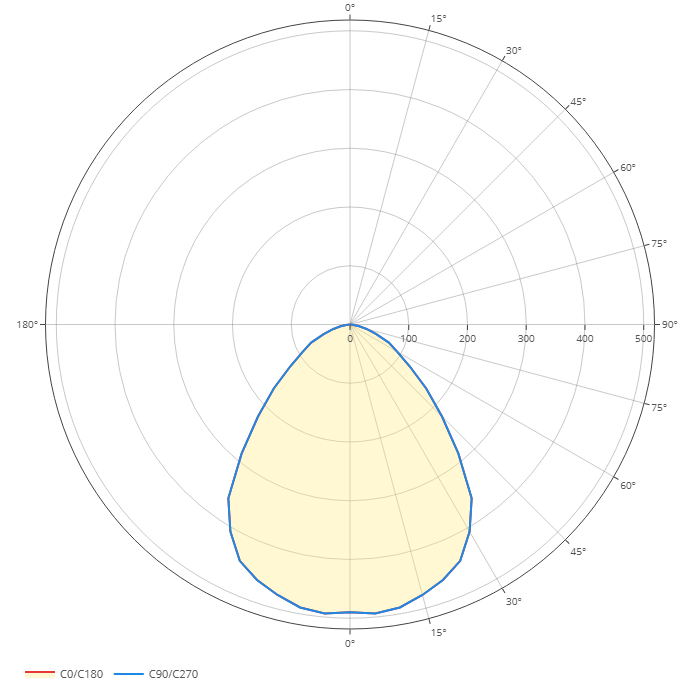

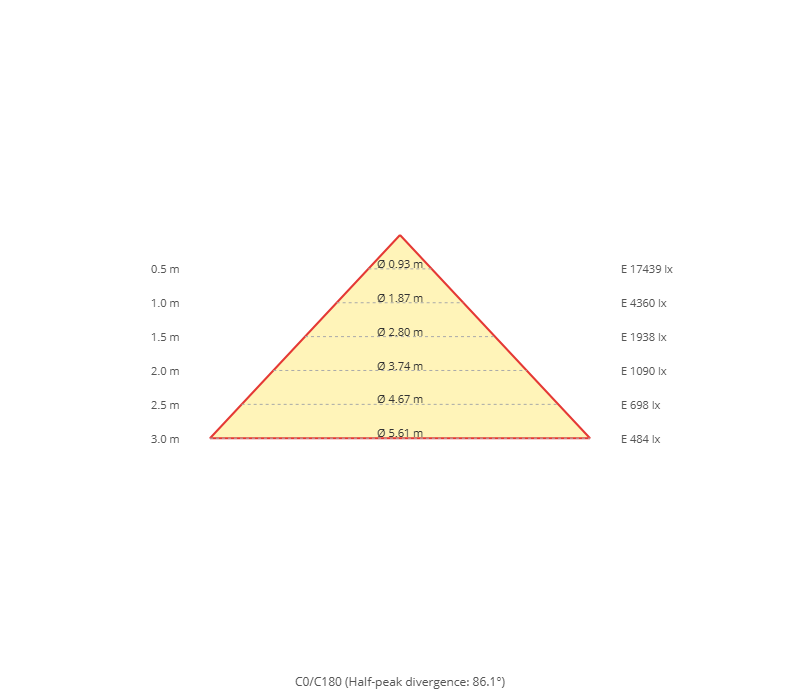

Photometry
Flux8900 lm
Power100 W
Half-peak divergence—
Colour temperature6500 K
Isolines · Plane 1 × 1 m
Plane
Isoline step
Processing photometric file…
Calculation on a horizontal 1 × 1 m plane 1 m from the luminaire, without inter-reflections. Hover a curve to read its lux value.
3D model
Loading 3D…
Certifications
ATEX Zone 2 & 22
Certification for use in potentially explosive atmospheres: Zone 2 (gas) and Zone 22 (dust)
RoHS
Compliance with the EU directive on the restriction of hazardous substances in electronic products
CE
Mandatory marking of compliance with European directives
